As for the piezo film, one axis stretched film of polyvinylidene fluoride (PVDF) is called polymer ferroelectric by the one that the polarization processing was done by a high voltage. This film has big piezo-electric in the direction of expansion and the direction of thickness of the film as shown in Figure 1. Polarization P3 of the vertical direction is shown on the film side caused by stress 1 in the direction
of the film of expansion by piezo-electric distortion constant d31.
This means the thing that the electric field is generated in the direction of the polarization and the counter direction in the film in the polarizing film. Therefore, the polarization is generated according to the electric field if electric field E3 joins the film contrary to the distortion, and the transformation that corresponds to distortion i because of the polarization happens.
that is, P3/ރi=d31=ރi/E3(i=1,2,3) expands and contracts in the direction of expansion(direction of the length hand) when the voltage is added to both sides of the film to be brief when expressing it by the expression.
It expands when the voltage is added to both sides of a polymer piezo-electric film, and there is a character to shrink when an opposite voltage is added. (a)(b)

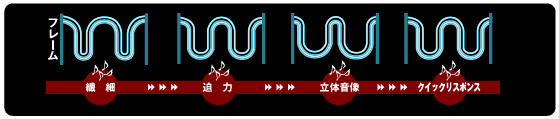

These piezo-electric two films are sticked together to turning inside out and it makes it to one film. (General name;Bimolffilm) The electrode thin film is formed in both sides of Bimolffilm, it builds in the wave-like, and it makes it to the vibration-board. (d)
The mountain shrink if the voltage joins the electrode on both sides of the vibration board, the valley spreads out, and an opposite voltage joins and the mountain spreads ,the valley shrink . (c)(e)
Therefore, when the music signal enters the electrode, the vibration board generates the breathed vibration sound wave.
Fig.2
There is a fundamental following differences though the vibration that the Heil-driver and the TAT-driver show in Fig.2 is done. Heil-driver drives the electrode with mass by pushing by the power of the magnet and pulling it. Then, the speed of standing up is a drive of a dynamic type of slowness until acceleration attaches. The feature of TAT-driver happens by the transition of a molecular level, makes momentarily, and becomes a big movement compared with it.
TAT-driver a upper photograph is a toy that finishes expanding instantaneously the rolling paper when air is blown in. That is, paper finishes postponing momentarily in the flow of air (current).
It will be able to be said that the response of TAT-driver is better overwhelmingly.
Moreover, it is a big advantage that there is no shield like the magnet that deteriorates the transmission of the sound wave to surroundings.
